ELCERAM ESC OXIDE 1/10

2.OXIDE 1/10

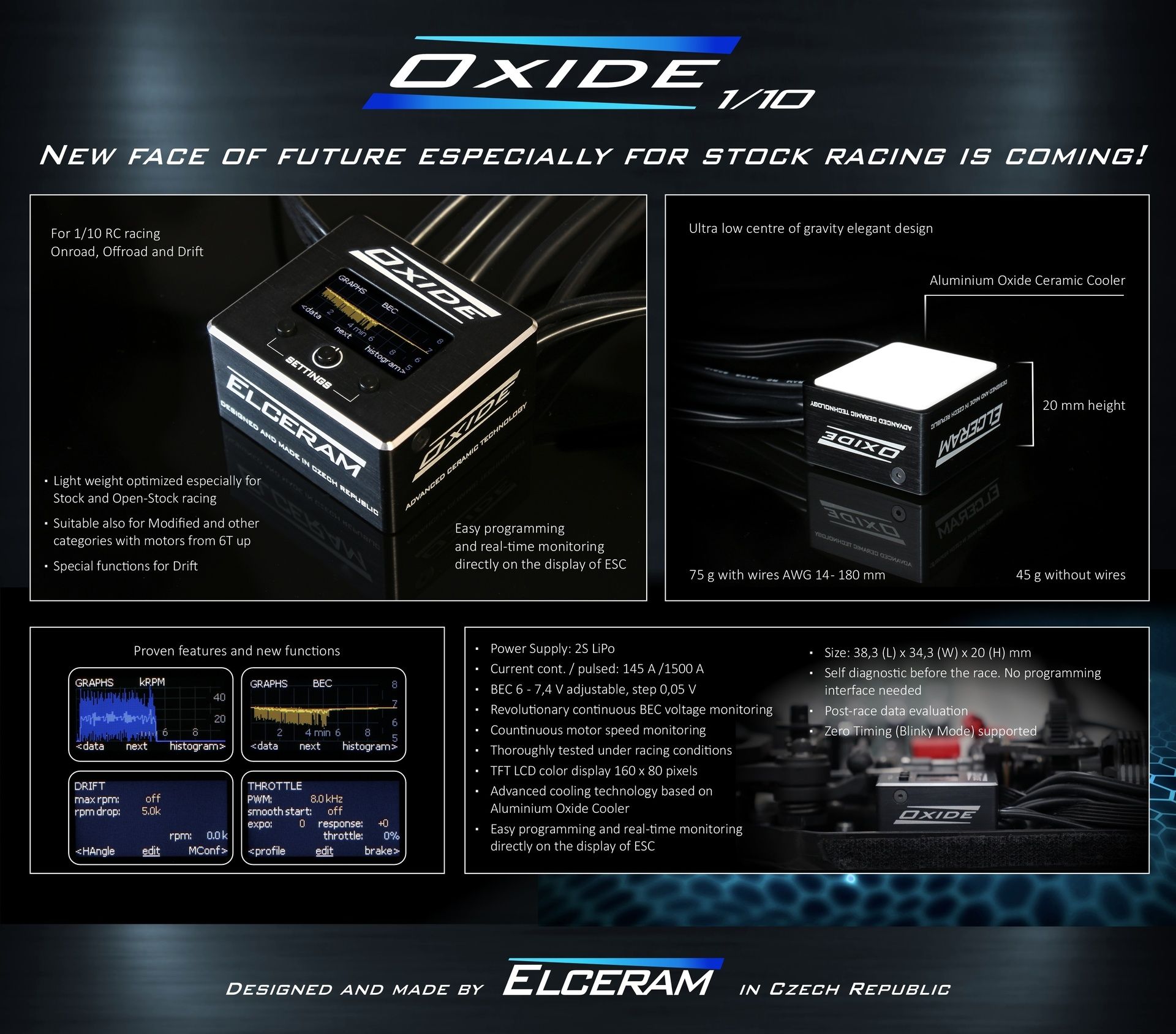

Key Features and Specifications
Developed especially for 1/10th professional RC cars. Buggy, Touring, Drift, etc.

Ideal solution for high level stock racing (standard, open stock), but for modified as well

TFT LCD color display with resolution 160 x 80 pixels.

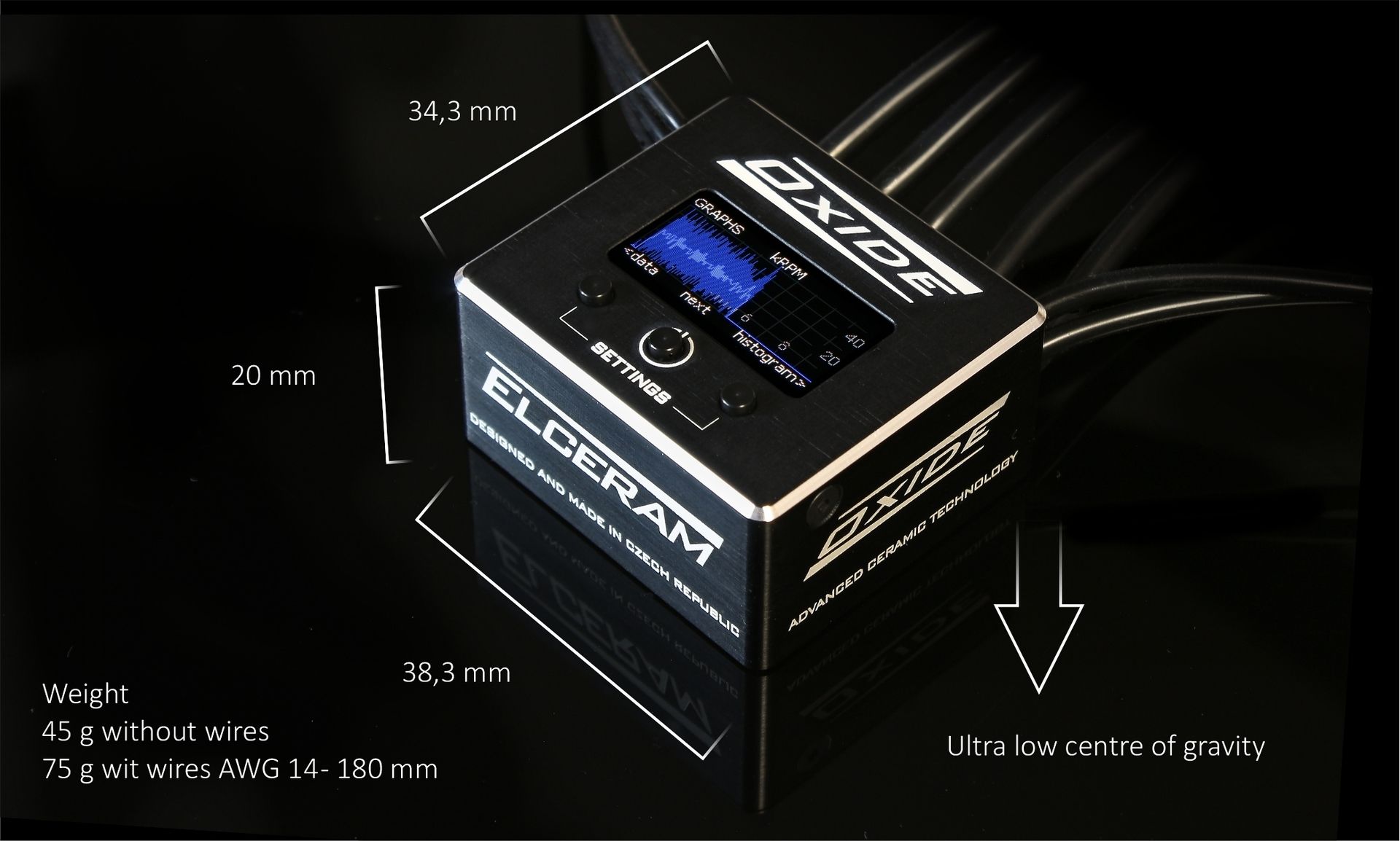

Size: 38,3 (L) x 34,3 (W) x 20 (H) mm.

Weight: 45 g without wires / 75 g with wires AWG14 - 180 mm.

Ultra low centre of gravity.

Power supply: 2S LiPo.

Current cont. / pulsed: 145 A / 1500 A.

BEC: 6 - 7,4 V adjustable, 4 A cont. / 10 A peak at 125 °C.

For sensored BLDC motors from 6T up.

Extreme low internal resistance based on silver conductive layer.

Advanced Cooling Technology based on Aluminium oxide Ceramic Cooler.

Designed for high level RC racing.

Real-time BEC volatge measurment and diagnostics.

Motor speed curve supported.

Zero Timing (Blinky Mode) supported.

RPM limiter supported.

Designed and produced in Czech Republic.

Easy Rx calibration.

Realtime monitoring: battery voltage, ESC and motor temperatures.

Self-diagnostic before the race: motor temperature, sensor cable, battery.

Post-race data evaluation.

Easy programming: throttle, brake, boost and turbo timing, hall angle and many other functions.

Race data logging, temperature and other curves, histograms and more.

Adjustable maintenance reminder for easy check.

No programming interface needed.
